A complete picosecond laser, in one compact system.
Everything you need.
Nothing you have to assemble.
Pulsera combines the mode-locked laser source, supporting electronics, and air-cooling system in one compact enclosure.
There is no separate laser head and oversized power supply to design around. No external water-cooling system. No internal optical alignment or calibration before first use.
Just a complete picosecond laser, ready to become part of your work.
Mode-locked picosecond output
Integrated electronics
Air-cooled operation
Standard AC power
Compact enclosure
Direct engineering support
Plug it in and get to work.
1. Unbox
Pulsera arrives as a complete system, securely packaged and prepared for operation.
2. Connect
Connect standard AC power and the controls required for your setup.
3. Begin
Turn on the laser and start testing, prototyping, or integrating it into your instrument. No lengthy laser alignment. No calibration before first use. No external water-cooling infrastructure.
* Integration into a commercial instrument may still require appropriate mounting, controls, beam-path design, and laser-safety measures.
A more practical path from test to product.
Prototype
Start testing the application without first assembling and commissioning a complicated laser system.
Integrate
Build around a compact, complete platform with direct support from the engineers who designed it.
Scale
Move toward commercial production with a US-based supplier and a laser architecture developed for repeatable manufacturing.
CHOOSE YOUR PULSERA
Start with the wavelength and performance you need.
AVAILABLE TO DEMO
Green picosecond performance.

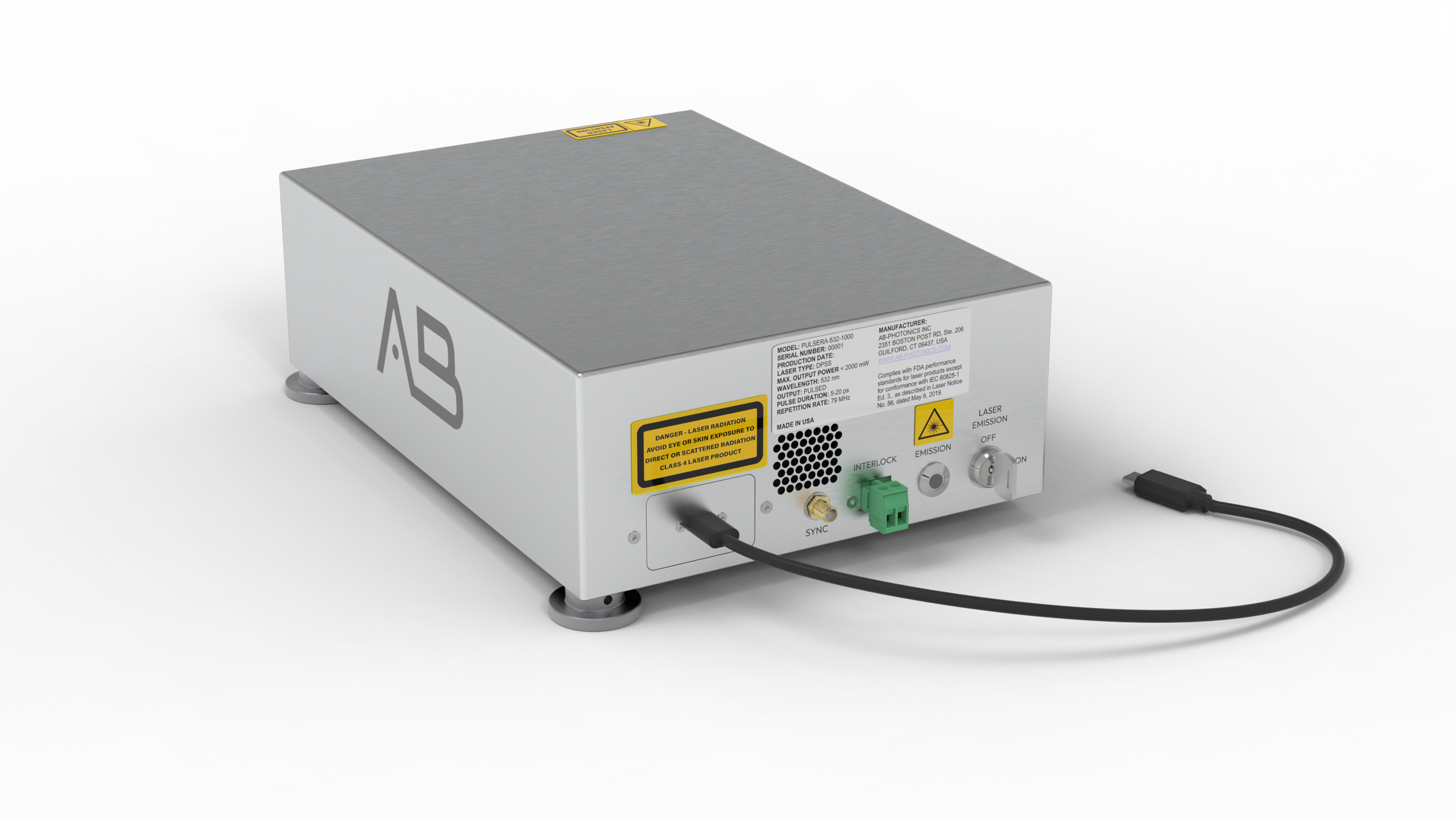

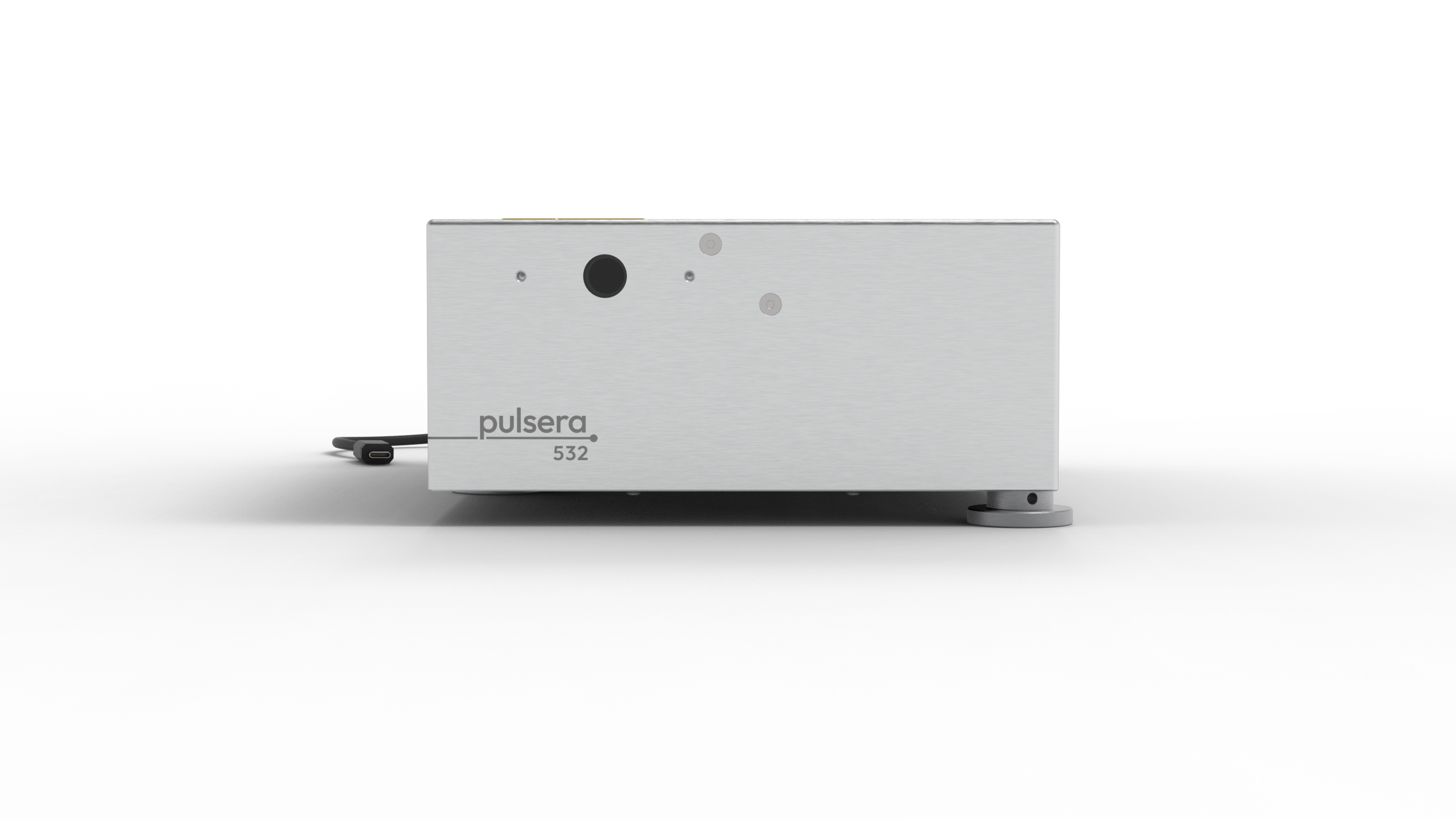

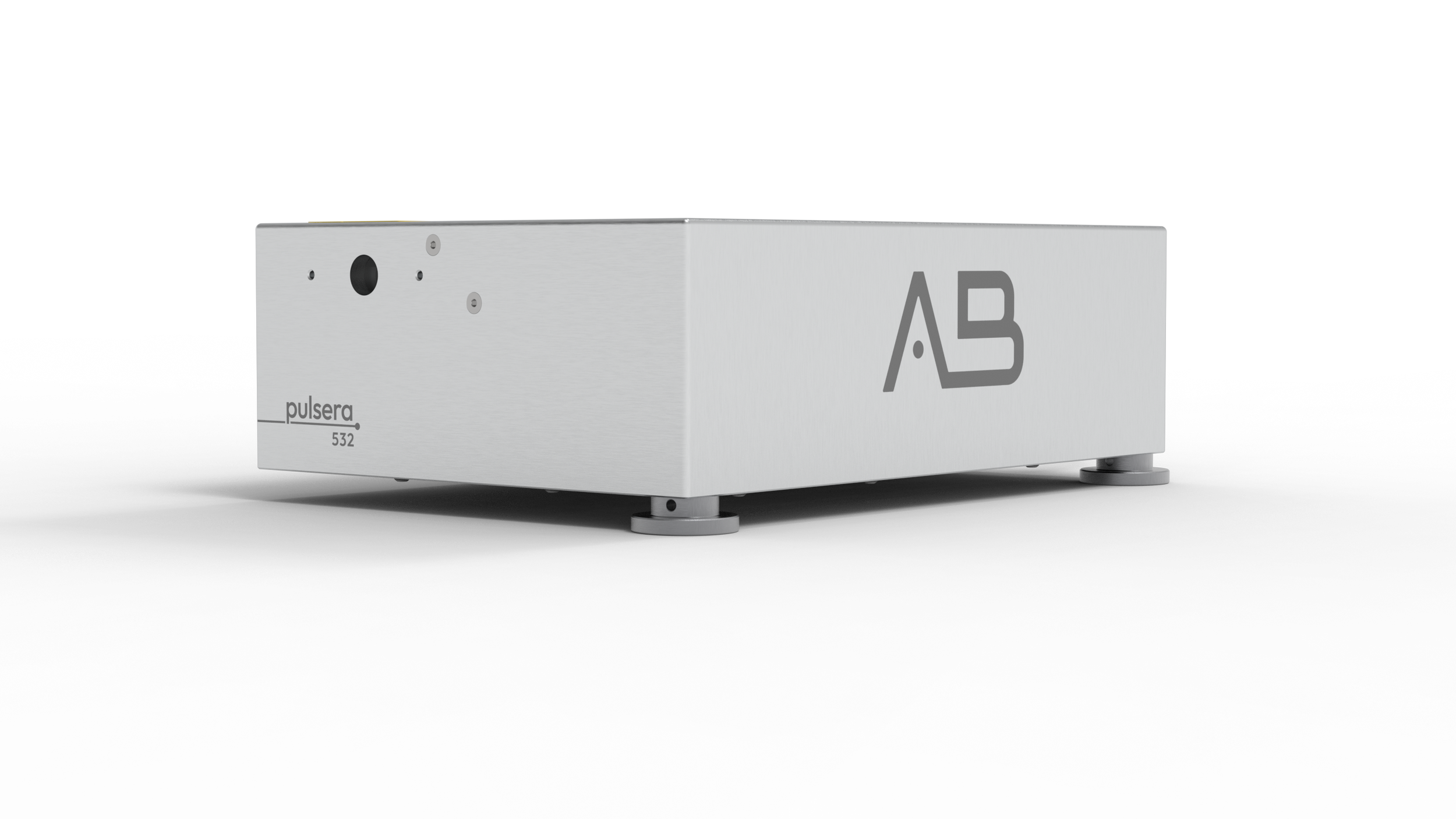

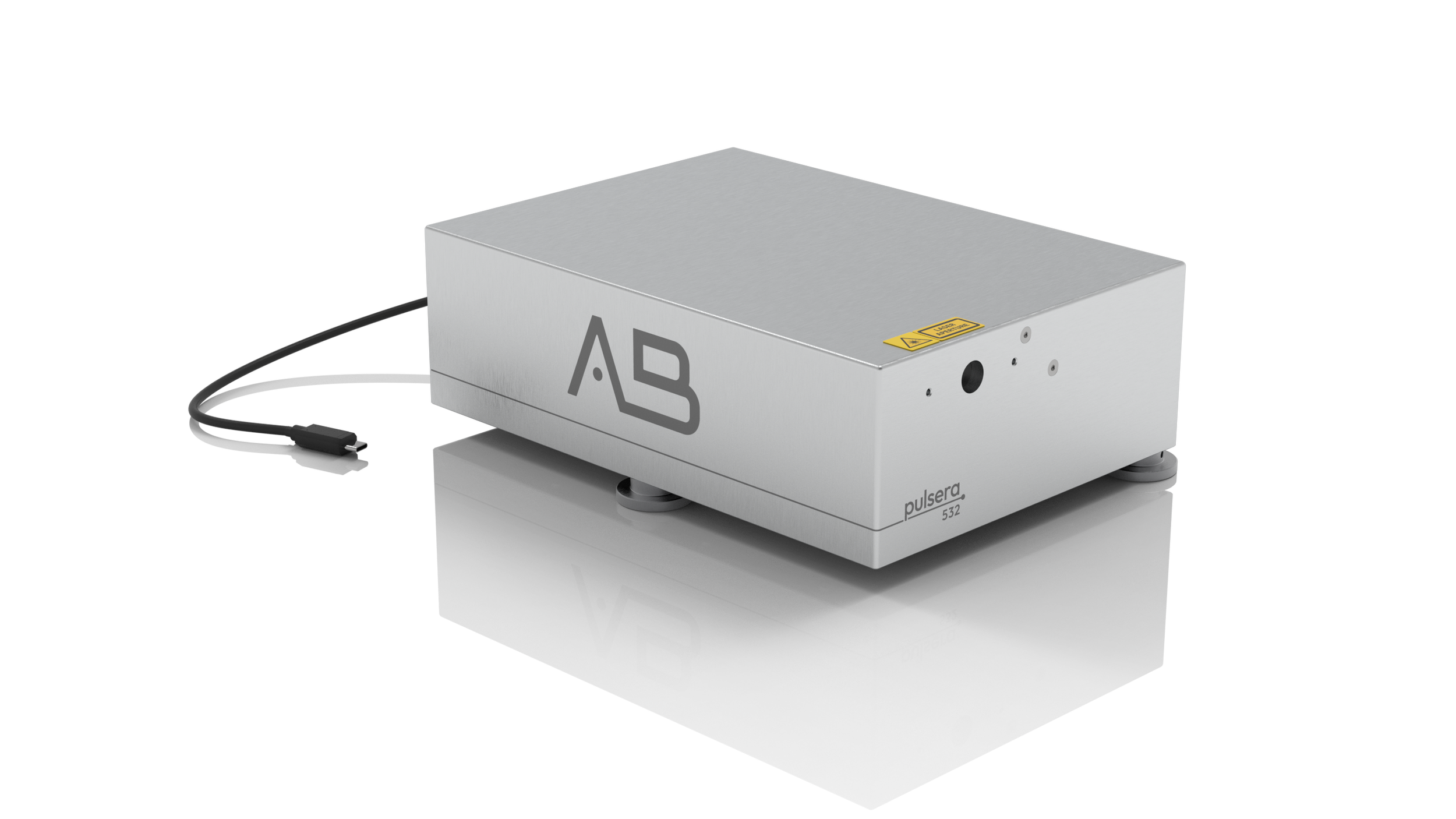

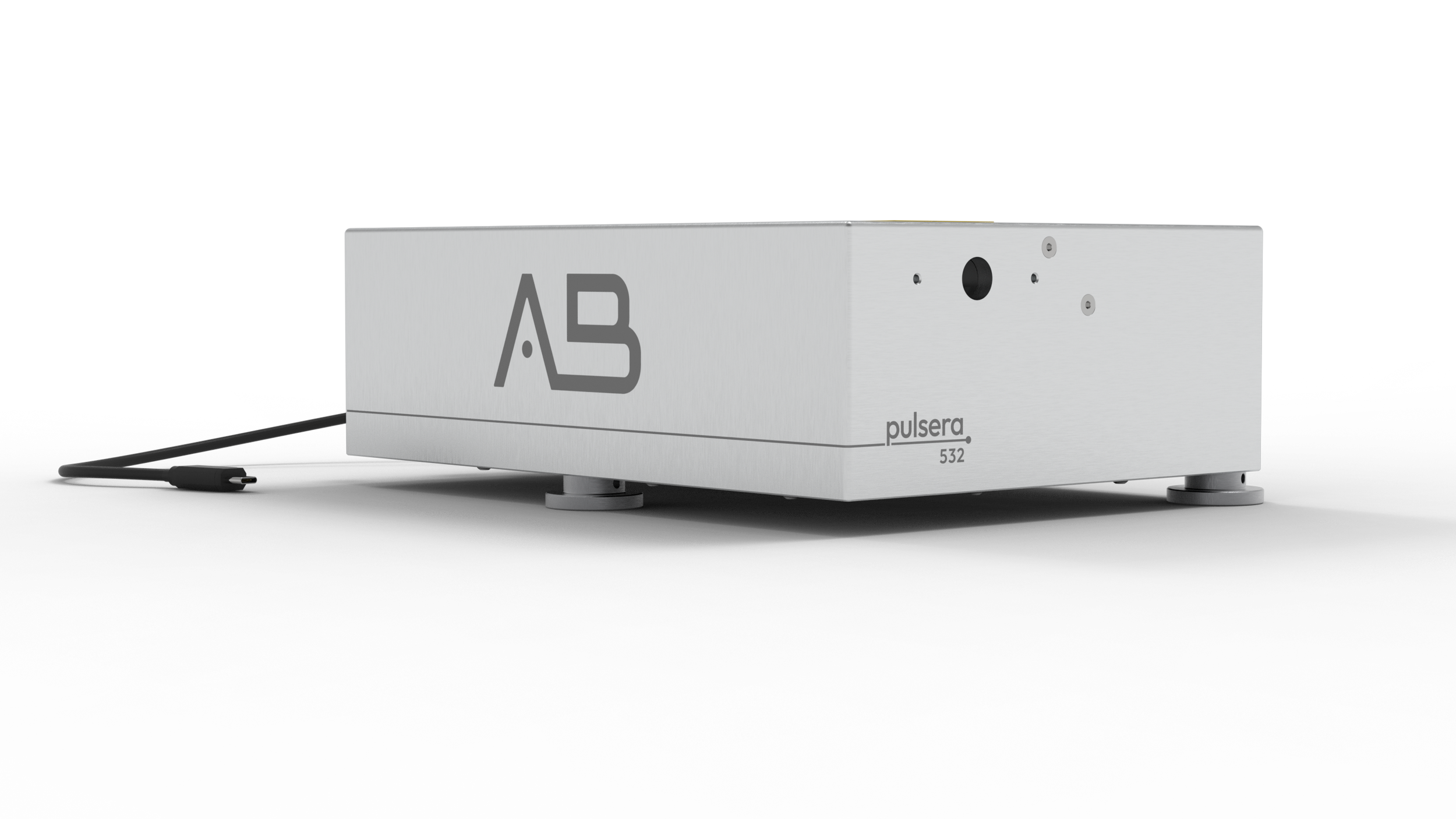

Pulsera 532 is a compact, mode-locked DPSS laser for spectroscopy, fluorescence, time-resolved measurements, instrument development, and R&D.
Configurations:
LP: 50 to 400 mW average power
HP: 500 to 1,000 mW average power
Raman: 100 mW average power and a spectral width below 50 pm
The complete system weighs just 3.8 kg and operates without external water cooling.
-
532 nm
Emission wavelengthApproximately 10 ps
Pulse width79 MHz
Repetition rate50 to 1,000 mW
Available average power range3.8 kg
Complete system weight265 × 190 × 95 mm
System dimensionsUSB-C power source
PowerIntegrated laser source, electronics, and air cooling
System format
AVAILABLE TO DEMO
Infrared picosecond performance.
Pulsera 1064 brings the compact design, simple operation, and scalable Pulsera platform to infrared applications.
Configurations:
LP: 100 to 400 mW average power
HP: 500 to 4,000 mW average power
Raman: 200 mW average power and a spectral width below 70 pm
Contact our team to discuss preliminary performance, expected availability, application fit, and pre-order options.
-
1064 nm
Emission wavelengthApproximately 10 ps
Pulse width79 MHz
Repetition rate500 to 4,000 mW
Available average power range for HP and Raman configurations3.8 kg
Complete system weight265 × 190 × 95 mm
System dimensionsUSB-C power source
PowerIntegrated laser source, electronics, and air cooling
System format
BUILD YOUR OWN
Built a Pulsera around your requirements.
When a standard Pulsera does not meet the application, work directly with the AB Photonics engineering team to explore a custom configuration.
Custom requirements may include wavelength, optical power, repetition rate, packaging, controls and integration, prototype quantities, and expected production volume.
The engineering team comes with the laser.
Choosing the laser is only part of building a successful instrument. AB Photonics works directly with your team to understand the application, identify the right starting point, answer integration questions, and support the path toward production. You will not be passed between sales representatives, distributors, and distant technical teams. You work directly with the people designing and manufacturing Pulsera.
Before You Order: Discuss the application, performance requirements, configuration, and expected volume.
As You Integrate: Get direct technical guidance when questions arise during development.
As You Scale: Plan production requirements, supply, and ongoing support with the same U.S.-based team.
