Introducing Blink 532
AB Photonics

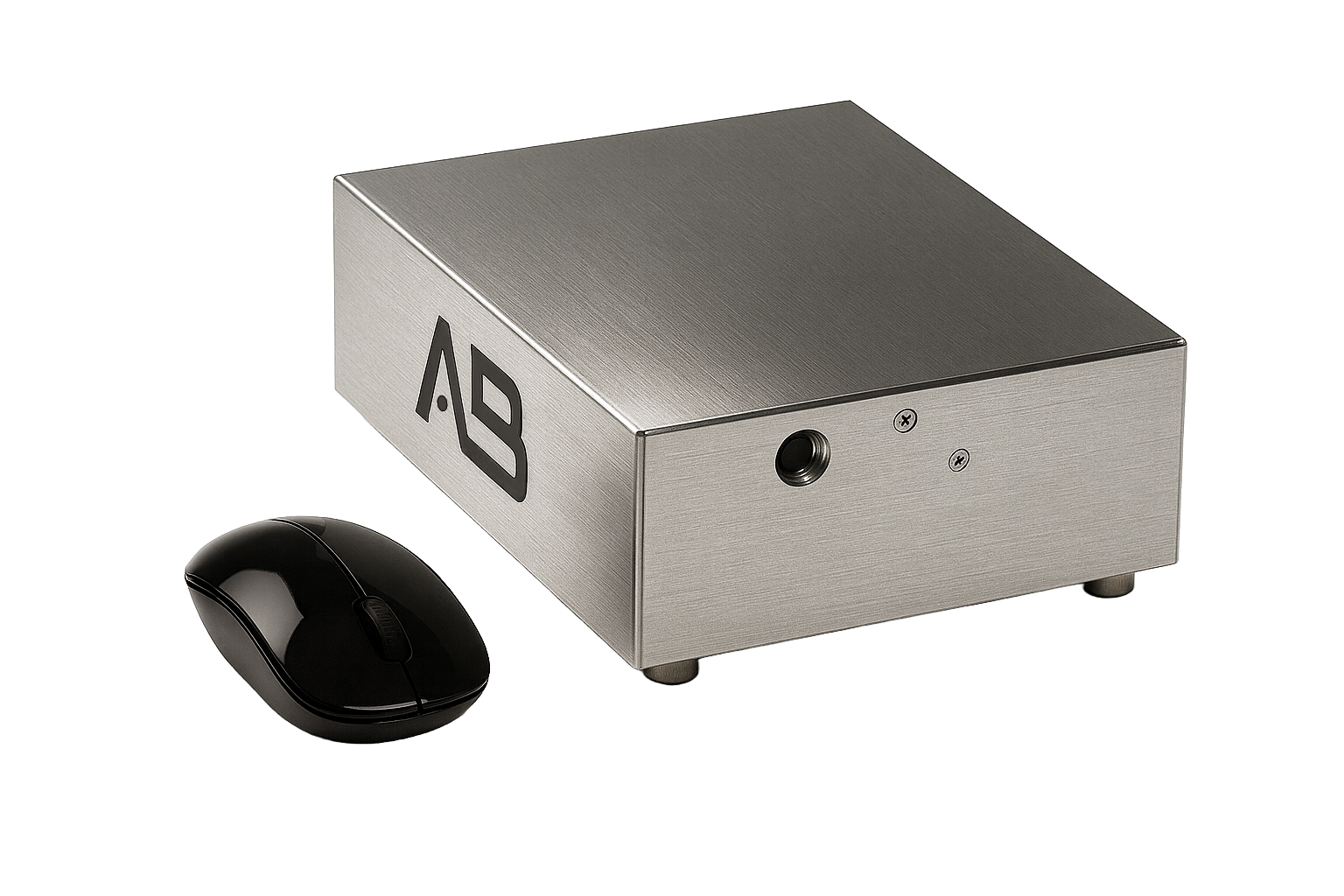

Blink 532-1000B
A Compact, Turnkey Picosecond Laser designed for precision.
Features
- Turnkey green benchtop laser system
- Integrated power supply & thermal management
- Reliable mode-locked pulses via SESAM
- Excellent beam quality (M² < 1.2)
- Designed and manufactured in the USA
Download Blink 532 DatasheetBlink 532 Technical Specifications
Specifications
| Parameter | Value |
|---|---|
| Average Powerᵃ | 1000mW |
| Emission Wavelength | 532nm |
| Emission Bandwidth (FWHM) | < 0.07 nm |
| Repetition Rateᵇ | 79 MHz |
| Pulse Width (FWHM) | ~10ps |
| Peak Power | 1.3kW |
| Output Power Stability | < 1% rms (10hrs) |
| Beam Quality, M² | TEMOO, M² < 1.1 |
| Beam Diameter, D4σ | 2.0mm |
| Beam Ellipticity | <5% |
| Polarization | >100 : 1 Vertical |
| Cold start time | <2 mins |
| Operation Temperature Range | 20ᵒ - 30ᵒ |
| Cooling | Air-cooled |
| Utility Requirement | 100-260VAC, 50/60Hz |
| AC Power Consumption | <50W |
| Dimensionsᶜ (L x W x H) | 257 x 182 x 94 mm |
| Weight | ??kg |
- ᵃ Factory set between 100mW to 1000mW
- ᵇ Other repition rates available upon request
- ᶜ Height is adjustable via changes in post length modifications
Blink-532

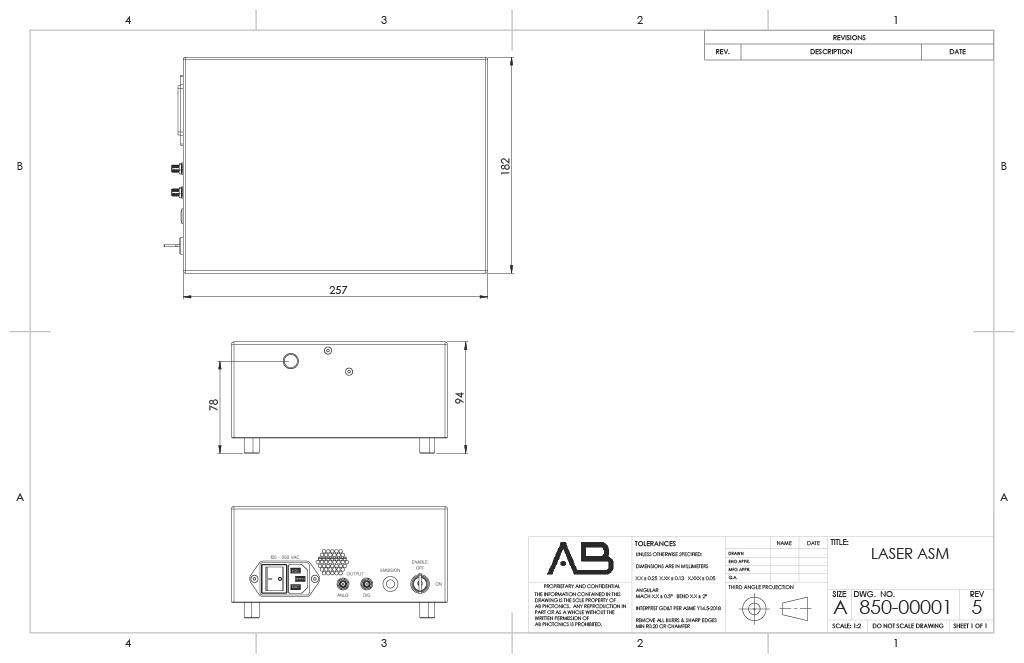

2D DrawingDownload PDF
Blink-532
DatasheetDownload PDF
